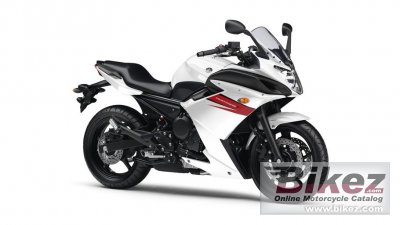

Yamaha XJ6 Diversion F ABS 20122012 Yamaha XJ6 Diversion F ABS specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| With lightweight cast wheels, large 41 mm diameter front forks and Monocross rear suspension, the XJ6 Diversion F ABS delivers great handling and secure road-holding. |
| General information | |
|---|---|
| Model name | Yamaha XJ6 Diversion F ABS |
| Model year | 2012 |
| Category | Sport touring |
| Rating | 3.5 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 600.0 ccm (36.61 cubic inches) |
| Engine type | In-line four, four-stroke |
| Power output | 76.4 HP (55.8 kW)) @ 10000 RPM |
| Torque | 59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 6100 RPM |
| Compression | 12.2:1 |
| Bore x stroke | 65.5 x 44.5 mm (2.6 x 1.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, Multiplate |
| Emission details | Three-way catalyser with O2 sensor |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, Diamond Shaped |
| Rake (fork angle) | 26.0° |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Linked monoshock with spring preload adjustment |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 222.0 kg (489.4 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1210 mm (47.6 inches) |
| Overall length | 2120 mm (83.5 inches) |
| Overall width | 770 mm (30.3 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Other specifications | |
| Color options | Blue, white, black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Yamaha XJ6 Diversion F ABS discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
