Yamaha's profilation of this bike |
Escape the ordinary
With its blend of performance, great handling and classic looks, you´ll want to ride the XJ6 Diversion F every day. |
General information |
Model name
|

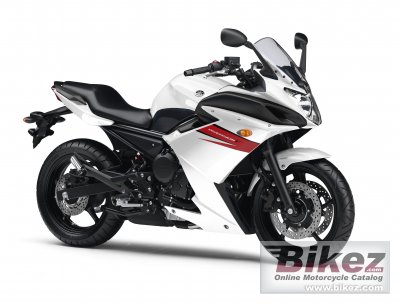

Yamaha XJ6 Diversion F |
Year
|
2011 |
Category
|
Sport |
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
600.0 ccm (36.61 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power
|
76.4 HP (55.8 kW)) @ 10000 RPM |
Torque
|
59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 8500 RPM |
Compression
|
12.2:1 |
Bore x stroke
|
65.5 x 44.5 mm (2.6 x 1.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple-disc |
Driveline
|
Constant Mesh, 6-speed |
Exhaust system
|
four-into-one exhaust with middle muffler |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel, diamond shaped |
Rake (fork angle)
|
26.0° |
Trail
|
104 mm (4.1 inches) |
Front suspension
|
Telescopic fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Swingarm (monocross) |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
160/60-ZR17 |
Front brakes
|
Double disc |
Rear brakes
|
Single disc |
Wheels
|
lightweight cast 5-spoke wheels |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
217.0 kg (478.4 pounds) |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall length
|
2120 mm (83.5 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1440 mm (56.7 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Other specifications |
Color options
|
White/red, black |
Starter
|
Electric |
