General information |
Motorcycle name
|

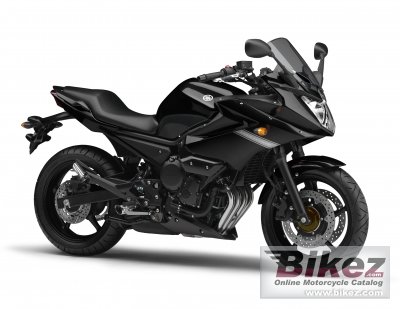

Yamaha XJ6 Diversion ABS |
Year
|
2013 |
Category
|
Naked bike |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Displacement
|
600.0 ccm (36.61 cubic inches) |
Engine type
|
In-line four, four-stroke |
Power
|
76.4 HP (55.8 kW)) @ 10000 RPM |
Torque
|
59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 6100 RPM |
Compression
|
12.2:1 |
Bore x stroke
|
65.5 x 44.5 mm (2.6 x 1.8 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Injection |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, Multiple Disc |
Emission details
|
Three-way catalyser |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel, Diamond Shaped |
Rake (fork angle)
|
26.0° |
Trail
|
103 mm (4.1 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Linked monoshock with spring preload adjustment |
Rear wheel travel
|
130 mm (5.1 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
160/60-ZR17 |
Front brakes
|
Double disc. ABS |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc. ABS |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
216.0 kg (476.2 pounds) |
Seat height
|
785 mm (30.9 inches) If adjustable, lowest setting. |
Overall length
|
2120 mm (83.5 inches) |
Overall width
|
770 mm (30.3 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1440 mm (56.7 inches) |
Fuel capacity
|
17.00 litres (4.49 US gallons) |
Reserve fuel capacity
|
4.00 litres (1.06 US gallons) |
Oil capacity
|
3.40 litres (3.59 US quarts) |
Other specifications |
Color options
|
Blue, white, black |
Starter
|
Electric |
Comments
|
Small windscreen. |
Modifications compared to previous model
|
New-style seat |
