Yamaha XJ6 Diversion ABS 20102010 Yamaha XJ6 Diversion ABS specifications, pictures, reviews and rating |

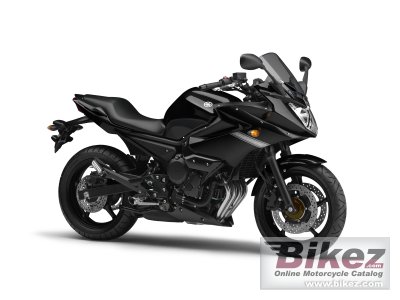

 2010 Yamaha XJ6 Diversion ABS. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| The 600cc liquid-cooled 4-cylinder engine is capable of great torque, especially at low revs, while brakes are at your fingertips. |
| General information | |
|---|---|
| Model name | Yamaha XJ6 Diversion ABS |
| Year of manufacture | 2010 |
| Type | Allround |
| Rating | 3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 600.0 ccm (36.61 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 76.4 HP (55.8 kW)) |
| Compression | 12.2:1 |
| Bore x stroke | 65.5 x 44.5 mm (2.6 x 1.8 inches) |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond shaped |
| Rake (fork angle) | 26.0° |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 216.0 kg (476.2 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1210 mm (47.6 inches) |
| Overall length | 2120 mm (83.5 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 17.30 litres (4.57 US gallons) |
| Oil capacity | 3.40 litres (3.59 US quarts) |
| Other specifications | |
| Color options | Red, white, black |
