Yamaha XJ6 Diversion ABS 20092009 Yamaha XJ6 Diversion ABS specifications, pictures, reviews and rating |

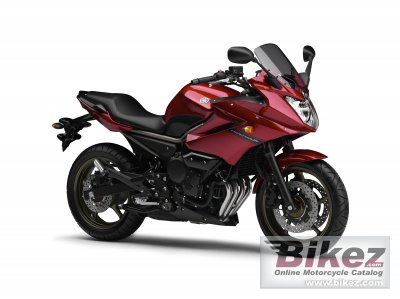

 2009 Yamaha XJ6 Diversion ABS. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Its newly-developed 600 cc liquid-cooled 4-stroke inline 4-cylinder engine has been designed to deliver a smooth band of easy-to-handle power, making the XJ6 Diversion an ideal machine for new and experienced riders. |
| General information | |
|---|---|
| Model name | Yamaha XJ6 Diversion ABS |
| Year of manufacture | 2009 |
| Type | Sport |
| Rating | 3.0 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 600.0 ccm (36.61 cubic inches) |
| Type of engine | In-line four, four-stroke |
| Output | 76.4 HP (55.8 kW)) @ 10000 RPM |
| Torque | 59.7 Nm (6.1 kgf-m or 44.0 ft.lbs) @ 6100 RPM |
| Bore x stroke | 65.5 x 44.5 mm (2.6 x 1.8 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel, diamond shaped |
| Trail | 104 mm (4.1 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm (monocross) |
| Rear wheel travel | 130 mm (5.1 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. ABS |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. ABS |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 211.0 kg (465.2 pounds) |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall length | 2120 mm (83.5 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 17.30 litres (4.57 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha XJ6 Diversion ABS discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2009 Yamaha XJ6 Diversion ABS discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Engine performance for the 2009 Yamaha XJ6 Diversion ABS:  (64.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
