General information |
|
Model name
|

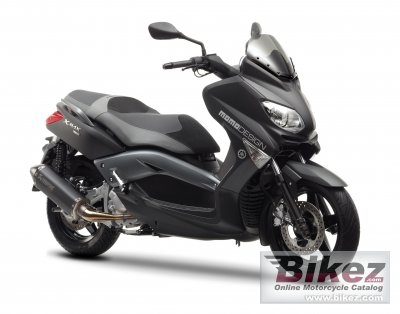

Yamaha X-MAX 250 MOMO Design |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
249.8 ccm (15.24 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
20.1 HP (14.7 kW)) @ 7500 RPM |
|
Torque
|
21.0 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
69.0 x 66.8 mm (2.7 x 2.6 inches) |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-Belt Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
120/70-15 |
|
Rear tire
|
140/70-14 |
|
Front brakes
|
Single disc |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Seat
|
textured dual seat embroidered with MOMO Design logos |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
180.0 kg (396.8 pounds) |
|
Seat height
|
792 mm (31.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1337 mm (52.6 inches) |
|
Overall length
|
2220 mm (87.4 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1545 mm (60.8 inches) |
|
Fuel capacity
|
11.80 litres (3.12 US gallons) |
|
Other specifications |
|
Color options
|
Grey |
|
Starter
|
Electric |
|
Carrying capacity
|
Underseat storage for two full face helmets, glove compartment. |
|
Comments
|
Limited edition model. |
