General information |
Motorcycle name
|

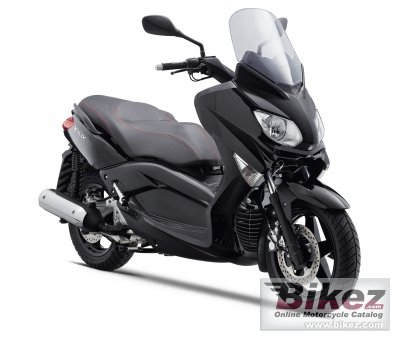

Yamaha X-MAX 250 |
Model year
|
2013 |
Category
|
Scooter |
Rating
|
3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
249.8 ccm (15.24 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
20.1 HP (14.7 kW)) @ 7500 RPM |
Torque
|
21.0 Nm (2.1 kgf-m or 15.5 ft.lbs) @ 6000 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
69.0 x 66.8 mm (2.7 x 2.6 inches) |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Driveline
|
V-Belt Automatic |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
110 mm (4.3 inches) |
Rear suspension
|
Unit swing |
Rear wheel travel
|
95 mm (3.7 inches) |
Front tire
|
120/70-15 |
Rear tire
|
140/70-14 |
Front brakes
|
Single disc. Optional ABS |
Diameter
|
267 mm (10.5 inches) |
Rear brakes
|
Single disc. Optional ABS |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
180.0 kg (396.8 pounds) |
Seat height
|
792 mm (31.2 inches) If adjustable, lowest setting. |
Overall height
|
1337 mm (52.6 inches) |
Overall length
|
2220 mm (87.4 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1545 mm (60.8 inches) |
Fuel capacity
|
11.80 litres (3.12 US gallons) |
Oil capacity
|
1.30 litres (1.37 US quarts) |
Other specifications |
Color options
|
Black, white, titanium |
Starter
|
Electric |
Carrying capacity
|
Underseat storage for two full face helmets, glove compartment. |
Modifications compared to previous model
|
Refined bodywork and styling |
