Yamaha X-MAX 250 20092009 Yamaha X-MAX 250 specifications, pictures, reviews and rating |

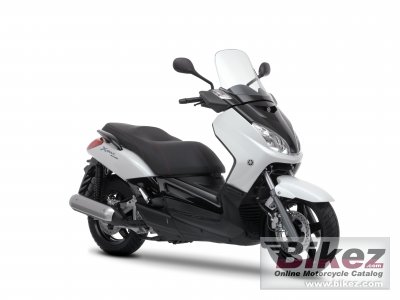

 2009 Yamaha X-MAX 250. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| Its liquid-cooled fuel-injected four-stroke engine produces a maximum torque figure of 20.8Nm, most of it available from very low engine revs. That puts serious pulling power in the rider’s right hand for overtaking or evasive manoeuvres. |
| General information | |
|---|---|
| Model name | Yamaha X-MAX 250 |
| Year | 2009 |
| Category | Scooter |
| Rating | 3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 249.8 ccm (15.24 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 20.9 HP (15.3 kW)) @ 7500 RPM |
| Torque | 21.3 Nm (2.2 kgf-m or 15.7 ft.lbs) @ 6500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 69.0 x 66.8 mm (2.7 x 2.6 inches) |
| Fuel system | Injection |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | 120/70-15 |
| Rear tire | 140/70-14 |
| Front brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.0 kg (388.0 pounds) |
| Seat height | 755 mm (29.7 inches) If adjustable, lowest setting. |
| Overall height | 1380 mm (54.3 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 790 mm (31.1 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1545 mm (60.8 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha X-MAX 250 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Discussions for every bikeBikez has discussion forums for every bike. View comments, questions and answers at the 2009 Yamaha X-MAX 250 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes. |
|
| Rating sample for this Yamaha bike | |
Touring capabilities for the 2009 Yamaha X-MAX 250:  (77.9 out of 100)Click here for complete rating. You can also compare bikes. |
|
