Yamaha's profilation of this bike |
With a strong, rigid frame, the very special X-MAX 125 Sport is designed for sports-style riding – in and outside the city. |
General information |
Model name
|

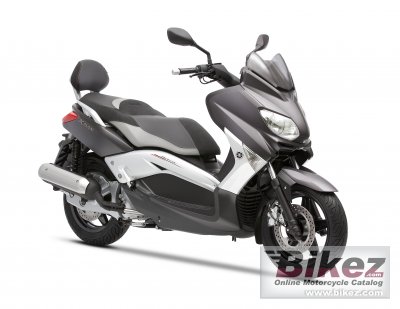

Yamaha X-Max 125 Sport |
Model year
|
2011 |
Category
|
Scooter |
Rating
|
4.0 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.7 ccm (7.61 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power output
|
14.0 HP (10.2 kW)) |
Torque
|
11.3 Nm (1.2 kgf-m or 8.4 ft.lbs) @ 8750 RPM |
Compression
|
11.2:1 |
Bore x stroke
|
52.0 x 58.6 mm (2.0 x 2.3 inches) |
Fuel system
|
Injection. EFI |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Front wheel travel
|
110 mm (4.3 inches) |
Rear suspension
|
Unit Swing |
Front tire
|
120/70-15 |
Rear tire
|
140/70-14 |
Front brakes
|
Single disc |
Diameter
|
267 mm (10.5 inches) |
Rear brakes
|
Single disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
173.0 kg (381.4 pounds) |
Seat height
|
792 mm (31.2 inches) If adjustable, lowest setting. |
Overall height
|
1337 mm (52.6 inches) |
Overall length
|
2200 mm (86.6 inches) |
Overall width
|
776 mm (30.6 inches) |
Ground clearance
|
135 mm (5.3 inches) |
Wheelbase
|
1545 mm (60.8 inches) |
Fuel capacity
|
12.00 litres (3.17 US gallons) |
Other specifications |
Color options
|
Black/silver |
Carrying capacity
|
Underseat storage for 2 full-face helmets. Large glove compartment |
Comments
|
Low sports-style screen |
