General information |
|
Model
|

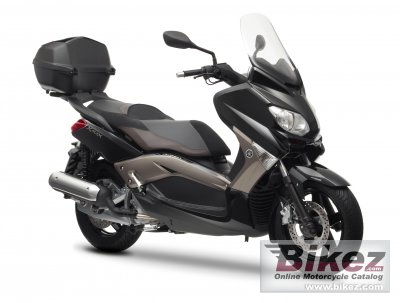

Yamaha X-Max 125 ABS Business |
|
Year
|
2013 |
|
Category
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.7 ccm (7.61 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
13.9 HP (10.1 kW)) @ 8750 RPM |
|
Torque
|
11.3 Nm (1.2 kgf-m or 8.3 ft.lbs) @ 8750 RPM |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
52.0 x 58.6 mm (2.0 x 2.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-Belt Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
110 mm (4.3 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
95 mm (3.7 inches) |
|
Front tire
|
120/70-15 |
|
Rear tire
|
140/70-14 |
|
Front brakes
|
Single disc. ABS |
|
Diameter
|
267 mm (10.5 inches) |
|
Rear brakes
|
Single disc. ABS |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Optional ABS |
|
Physical measures and capacities |
|
Dry weight
|
160.0 kg (352.7 pounds) |
|
Weight incl. oil, gas, etc
|
176.0 kg (388.0 pounds) |
|
Power/weight ratio
|
0.0868 HP/kg |
|
Seat height
|
775 mm (30.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1337 mm (52.6 inches) |
|
Overall length
|
2220 mm (87.4 inches) |
|
Overall width
|
776 mm (30.6 inches) |
|
Ground clearance
|
135 mm (5.3 inches) |
|
Wheelbase
|
1545 mm (60.8 inches) |
|
Fuel capacity
|
11.80 litres (3.12 US gallons) |
|
Other specifications |
|
Color options
|
Classy stone (grey) |
|
Starter
|
Electric |
|
Carrying capacity
|
Underseat storage for two full-face helmets, glove box, top case |
|
Comments
|
Windscreen. Special edition colour scheme and seat. |
