Yamaha X-Max 125 ABS 20112011 Yamaha X-Max 125 ABS specifications, pictures, reviews and rating |

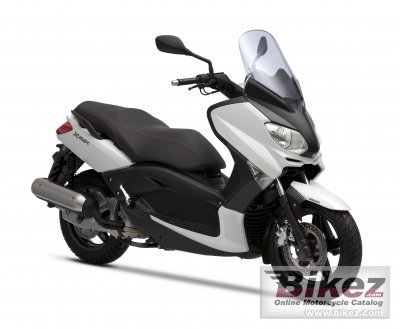

 2011 Yamaha X-Max 125 ABS. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Large wheels and ABS give you the added stability and control you need. Add extensive weather protection, a large and comfy double seat plus storage space for two helmets, and the X-MAX 125 is a perfect combination of modern design and practicality. |
| General information | |
|---|---|
| Motorcycle name | Yamaha X-Max 125 ABS |
| Year | 2011 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.7 ccm (7.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 14.0 HP (10.2 kW)) |
| Torque | 11.3 Nm (1.2 kgf-m or 8.4 ft.lbs) @ 8750 RPM |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Fuel system | Injection |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Unit Swing |
| Front tire | 120/70-15 |
| Rear tire | 140/70-14 |
| Front brakes | Single disc. Anti-lock braking |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc. Anti-lock braking |
| Diameter | 240 mm (9.4 inches) |
| Seat | dual seat |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 176.0 kg (388.0 pounds) |
| Seat height | 792 mm (31.2 inches) If adjustable, lowest setting. |
| Overall height | 1337 mm (52.6 inches) |
| Overall length | 2200 mm (86.6 inches) |
| Overall width | 776 mm (30.6 inches) |
| Ground clearance | 135 mm (5.3 inches) |
| Wheelbase | 1545 mm (60.8 inches) |
| Fuel capacity | 11.80 litres (3.12 US gallons) |
| Other specifications | |
| Color options | Red, white, black |
| Starter | Electric |
| Carrying capacity | Underseat storage for two full-face helmets. |
| Update specs | Report missing specs or required updates. |
