Yamaha X-MAX 125 20092009 Yamaha X-MAX 125 specifications, pictures, reviews and rating |

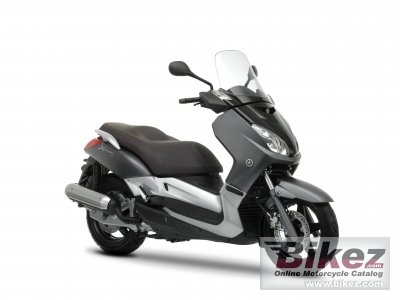

 2009 Yamaha X-MAX 125. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| The X-MAX 125 makes it easy by delivering motorcycle-sized fun in a practical scooter package. Engineered to provide high enjoyment on any trip, X-MAX 125 has performance to spare from its fuel-injected liquid-cooled engine. |
| General information | |
|---|---|
| Model | Yamaha X-MAX 125 |
| Year model | 2009 |
| Type | Scooter |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.7 ccm (7.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 13.9 HP (10.1 kW)) @ 8750 RPM |
| Torque | 11.3 Nm (1.2 kgf-m or 8.4 ft.lbs) @ 6500 RPM |
| Compression | 11.2:1 |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Fuel system | Injection |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 110 mm (4.3 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 95 mm (3.7 inches) |
| Front tire | 120/70-15 |
| Rear tire | 140/70-14 |
| Front brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 166.0 kg (366.0 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1380 mm (54.3 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 790 mm (31.1 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1525 mm (60.0 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha X-MAX 125 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 Yamaha X-MAX 125 for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha bike | |
Value for money for the 2009 Yamaha X-MAX 125:  (70.0 out of 100)Click here for complete rating. You can also compare bikes. |
|
