Yamaha X-Max 125 20062006 Yamaha X-Max 125 specifications, pictures, reviews and rating |

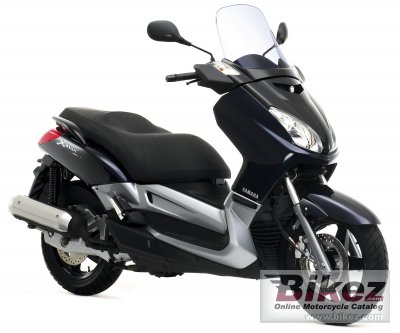

 2006 Yamaha X-Max 125. Picture credits - Yamaha. Submit more pictures.
|
|
| Yamaha's profilation of this bike |
| With its class-leading powerful new engine, a liquid-cooled four-stroke producing 14bhp, it has a top speed of 110kph, yet the Xmax 125 meets the tough forthcoming EU3 emissions regulations. For exceptional handling the chassis is extra stiff and fitted with large diameter 15” front and 14” rear wheels, ideal for accurate cornering and high speed stability, while the front and rear discs ensure confident stopping. |
| General information | |
|---|---|
| Model name | Yamaha X-Max 125 |
| Year model | 2006 |
| Type | Scooter |
| Rating | 3.8 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.7 ccm (7.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 13.9 HP (10.1 kW)) @ 8750 RPM |
| Torque | 11.3 Nm (1.2 kgf-m or 8.4 ft.lbs) @ 6500 RPM |
| Compression | 11.2:1 |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Fuel system | Injection |
| Ignition | Electronic ECU |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Hydraulic telescopic fork |
| Rear suspension | Hydraulic unit swing |
| Front tire | 120/70-M15 |
| Rear tire | 140/70-M14 |
| Front brakes | Single disc |
| Diameter | 267 mm (10.5 inches) |
| Rear brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Physical measures and capacities | |
| Dry weight | 153.0 kg (337.3 pounds) |
| Power/weight ratio | 0.0908 HP/kg |
| Seat height | 785 mm (30.9 inches) If adjustable, lowest setting. |
| Overall height | 1385 mm (54.5 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 790 mm (31.1 inches) |
| Ground clearance | 113 mm (4.4 inches) |
| Wheelbase | 1545 mm (60.8 inches) |
| Fuel capacity | 12.50 litres (3.30 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
