Yamaha's profilation of this bike |
Light Saber. Light, nimble, and deliciously precise, the trail-taming WR250F is back in blue and white and badder than ever. Here´s what the critics say about our 13,500-rpm five-titanium-valved electric-start single-cylinder. ´The WR250F sets new standards in off-road power, tractability, delivery and starting.´ DIRT BIKE 3/04.
|
General information |
Motorcycle name
|

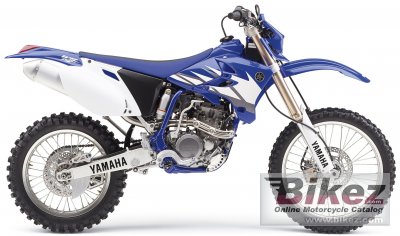

Yamaha WR 250 F |
Year of manufacture
|
2005 |
Type
|
Enduro / offroad |
Price as new | US$ 5899. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
249.0 ccm (15.19 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
12.5:1 |
Bore x stroke
|
77.0 x 53.6 mm (3.0 x 2.1 inches) |
Valves per cylinder
|
5 |
Fuel system
|
Carburettor |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
46mm Kayaba inverted telescopic fork w/adjustable compression and rebound damping |
Front wheel travel
|
300 mm (11.8 inches) |
Rear suspension
|
Kayaba single shock w/adjustable preload, compression and rebound damping and separate hi/lo-speed compression adjuster |
Rear wheel travel
|
315 mm (12.4 inches) |
Front tire
|
80/100-21 |
Rear tire
|
100/100-18 |
Front brakes
|
Single disc |
Diameter
|
250 mm (9.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Seat height
|
998 mm (39.3 inches) If adjustable, lowest setting. |
Overall height
|
1303 mm (51.3 inches) |
Overall length
|
2162 mm (85.1 inches) |
Overall width
|
827 mm (32.6 inches) |
Ground clearance
|
381 mm (15.0 inches) |
Wheelbase
|
1476 mm (58.1 inches) |
Fuel capacity
|
9.84 litres (2.60 US gallons) |
Other specifications |
Color options
|
Team Yamaha Blue/White |
