General information |
|
Model
|

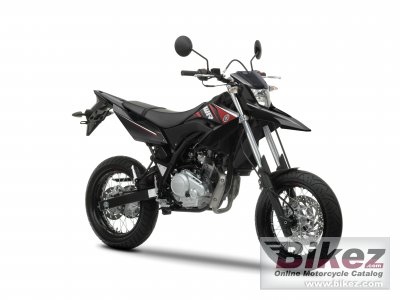

Yamaha WR 125X |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.7 ccm (7.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
14.8 HP (10.8 kW)) |
|
Torque
|
12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) |
|
Compression
|
11.2:1 |
|
Bore x stroke
|
52.0 x 58.6 mm (2.0 x 2.3 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI (digital) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple-disc coil spring |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel double cradle |
|
Trail
|
79 mm (3.1 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
240 mm (9.4 inches) |
|
Rear suspension
|
Swingarm (link suspension) |
|
Rear wheel travel
|
230 mm (9.1 inches) |
|
Front tire
|
110/70-M17 |
|
Rear tire
|
140/70-M17 |
|
Front brakes
|
Single disc |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
137.0 kg (302.0 pounds) |
|
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
|
Overall height
|
1165 mm (45.9 inches) |
|
Overall length
|
2095 mm (82.5 inches) |
|
Overall width
|
835 mm (32.9 inches) |
|
Ground clearance
|
255 mm (10.0 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
8.50 litres (2.25 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
Blue, black |
|
Starter
|
Electric |
