General information |
Model name
|

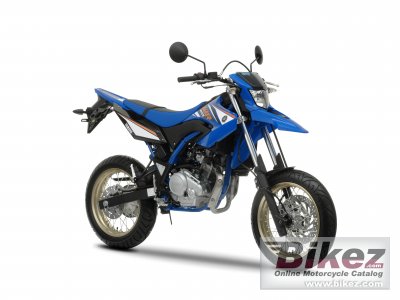

Yamaha WR125X |
Year model
|
2009 |
Type
|
Super motard |
Rating
|
3.9 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
124.7 ccm (7.61 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Effect
|
14.8 HP (10.8 kW)) |
Torque
|
12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) |
Bore x stroke
|
52.0 x 58.6 mm (2.0 x 2.3 inches) |
Fuel system
|
Injection |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI (digital) |
Lubrication system
|
Wet sump |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Clutch
|
Wet, multiple-disc coil spring |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel double cradle |
Trail
|
79 mm (3.1 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
240 mm (9.4 inches) |
Rear suspension
|
Swingarm (link suspension) |
Rear wheel travel
|
230 mm (9.1 inches) |
Front tire
|
110/70-M17 |
Rear tire
|
140/70-M17 |
Front brakes
|
Single disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
137.0 kg (302.0 pounds) |
Seat height
|
920 mm (36.2 inches) If adjustable, lowest setting. |
Overall height
|
1165 mm (45.9 inches) |
Overall length
|
2095 mm (82.5 inches) |
Ground clearance
|
255 mm (10.0 inches) |
Wheelbase
|
1430 mm (56.3 inches) |
Fuel capacity
|
8.50 litres (2.25 US gallons) |
Oil capacity
|
1.10 litres (1.16 US quarts) |
Other specifications |
Starter
|
Electric |
