General information |
|
Model
|

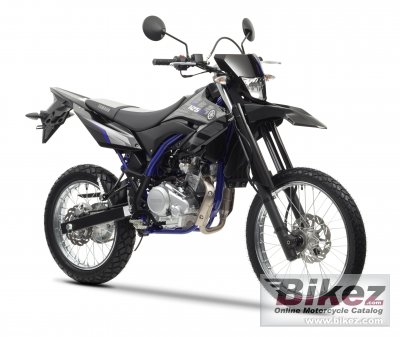

Yamaha WR125R |
|
Year of manufacture
|
2013 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
124.0 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Engine details
|
Forward-inclined single cylinder |
|
Output
|
14.8 HP (10.8 kW)) @ 9000 RPM |
|
Torque
|
12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) @ 5500 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet, multiple disc |
|
Driveline
|
Constant mesh |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Diamond shaped |
|
Rake (fork angle)
|
27.0° |
|
Trail
|
114 mm (4.5 inches) |
|
Front suspension
|
Telescopic forks |
|
Front wheel travel
|
170 mm (6.7 inches) |
|
Rear suspension
|
Swingarm, (link suspension), Monoshock |
|
Rear wheel travel
|
190 mm (7.5 inches) |
|
Front tire
|
90/90-S21 |
|
Rear tire
|
120/80-S18 |
|
Front brakes
|
Single disc. Wavy disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Rear brakes
|
Single disc. Wavy disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
|
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
|
Overall length
|
2110 mm (83.1 inches) |
|
Ground clearance
|
220 mm (8.7 inches) |
|
Wheelbase
|
1335 mm (52.6 inches) |
|
Fuel capacity
|
9.00 litres (2.38 US gallons) |
|
Oil capacity
|
1.20 litres (1.27 US quarts) |
|
Other specifications |
|
Color options
|
Blue, black |
|
Starter
|
Electric & kick |
|
Comments
|
Designed for stand up or sit down riding. |
