Yamaha WR125R 20122012 Yamaha WR125R specifications, pictures, reviews and rating |

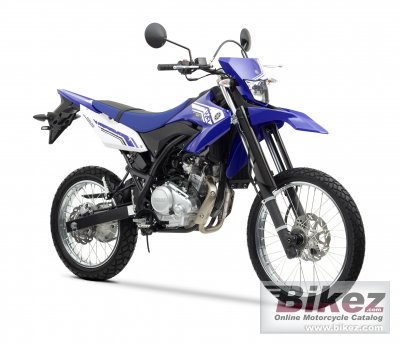

2012 Yamaha WR125R. Image credits - Yamaha.
| Yamaha's profilation of this bike |
| For instant, free-revving performance, the WR125R uses a fuel-injected, liquid-cooled, 4-valve, 4-stroke SOHC single-cylinder engine. And to ensure impressive off-road potential, its 21-inch front wheel and 18-inch rear wheel are fitted with new dual-purpose tyres. |
| General information | |
|---|---|
| Model | Yamaha WR125R |
| Model year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Engine details | Forward-inclined single cylinder |
| Power output | 14.8 HP (10.8 kW)) @ 9000 RPM |
| Torque | 12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) @ 5500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple disc |
| Driveline | Constant Mesh, 6-speed |
| Chassis, suspension, brakes and wheels | |
| Frame type | Diamond shaped |
| Rake (fork angle) | 27.0° |
| Trail | 114 mm (4.5 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 170 mm (6.7 inches) |
| Rear suspension | Swingarm, (link suspension), Monoshock |
| Rear wheel travel | 190 mm (7.5 inches) |
| Front tire | 90/90-S21 |
| Rear tire | 120/80-S18 |
| Front brakes | Single disc. Wavy discs |
| Diameter | 245 mm (9.6 inches) |
| Rear brakes | Single disc. Wavy discs |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 120.0 kg (264.6 pounds) |
| Seat height | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall length | 2110 mm (83.1 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 220 mm (8.7 inches) |
| Wheelbase | 1335 mm (52.6 inches) |
| Fuel capacity | 9.00 litres (2.38 US gallons) |
| Oil capacity | 1.20 litres (1.27 US quarts) |
| Other specifications | |
| Color options | Blue, black |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Yamaha WR125R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
