Yamaha's profilation of this bike |
Whether you feel like tearing up the dirt or hitting the road, the WR125R gives you the means to do it - with a full-size, 125cc design finished in Yamaha´s aggressive off-road styling. |
General information |
Motorcycle name
|

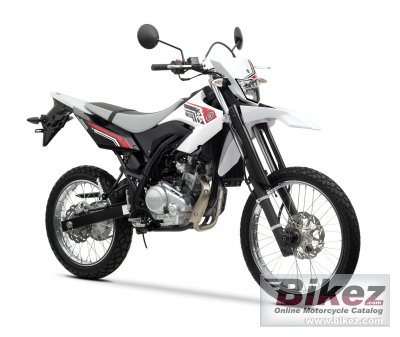

Yamaha WR125R |
Year
|
2011 |
Category
|
Enduro / offroad |
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
124.0 ccm (7.57 cubic inches) |
Engine type
|
Single cylinder, four-stroke |
Power
|
14.8 HP (10.8 kW)) @ 9000 RPM |
Torque
|
12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) @ 5500 RPM |
Compression
|
10.0:1 |
Bore x stroke
|
54.0 x 54.0 mm (2.1 x 2.1 inches) |
Valves per cylinder
|
4 |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
CDI |
Lubrication system
|
Wet sump |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet, multiple disc |
Driveline
|
Constant Mesh, 6-speed |
Chassis, suspension, brakes and wheels |
Frame type
|
Diamond shaped |
Trail
|
114 mm (4.5 inches) |
Front suspension
|
Telescopic forks |
Front wheel travel
|
170 mm (6.7 inches) |
Rear suspension
|
Swingarm |
Rear wheel travel
|
190 mm (7.5 inches) |
Front tire
|
90/90-S21 |
Rear tire
|
120/80-S18 |
Front brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
120.0 kg (264.6 pounds) |
Seat height
|
860 mm (33.9 inches) If adjustable, lowest setting. |
Overall length
|
2110 mm (83.1 inches) |
Overall width
|
800 mm (31.5 inches) |
Ground clearance
|
220 mm (8.7 inches) |
Wheelbase
|
1335 mm (52.6 inches) |
Fuel capacity
|
9.00 litres (2.38 US gallons) |
Oil capacity
|
1.20 litres (1.27 US quarts) |
Other specifications |
Color options
|
Blue, black |
Starter
|
Electric & kick |
