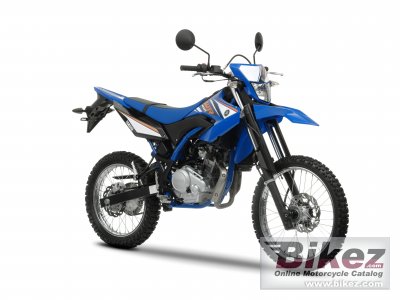

Yamaha WR125R 20092009 Yamaha WR125R specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Yamaha’s 250cc 4-stroke WR Enduro models have been some of the most innovative and competitive bikes in recent years – and the good news for 2009 is that a new 125cc version is here! |
| General information | |
|---|---|
| Model | Yamaha WR125R |
| Model year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.7 ccm (7.61 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 14.8 HP (10.8 kW)) |
| Torque | 12.2 Nm (1.2 kgf-m or 9.0 ft.lbs) |
| Compression | 11.2:1 |
| Bore x stroke | 52.0 x 58.6 mm (2.0 x 2.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiple-disc coil spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel double cradle |
| Trail | 107 mm (4.2 inches) |
| Front suspension | Telescopic forks |
| Front wheel travel | 240 mm (9.4 inches) |
| Rear suspension | Swingarm (link suspension) |
| Rear wheel travel | 230 mm (9.1 inches) |
| Front tire | 80/90-M21 |
| Rear tire | 110/80-M18 |
| Front brakes | Single disc |
| Diameter | 240 mm (9.4 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 133.0 kg (293.2 pounds) |
| Seat height | 930 mm (36.6 inches) If adjustable, lowest setting. |
| Overall height | 1220 mm (48.0 inches) |
| Overall length | 2180 mm (85.8 inches) |
| Overall width | 835 mm (32.9 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 8.50 litres (2.25 US gallons) |
| Oil capacity | 1.10 litres (1.16 US quarts) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 Yamaha WR125R discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
