2010 Yamaha Wolverine 450 Auto. 4X4

Yamaha Wolverine 450 Auto. 4X4 2010


2010 Yamaha Wolverine 450 Auto. 4X4 specifications, pictures, reviews and rating

2010 Yamaha Wolverine 450 Auto. 4X4

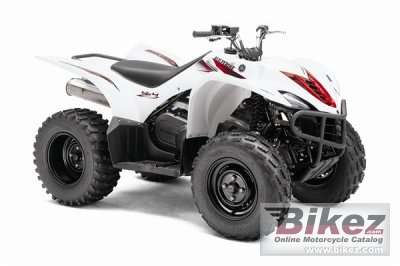

2010 Yamaha Wolverine 450 Auto. 4X4. Picture credits - Yamaha. Submit more pictures.
Yamaha's profilation of this bike
The sportiest 4x4 ever. The ultimate fun, trail ATV in the industry. The Wolverine 450 4x4 combines features like 4WD and a fully automatic transmission with light weight and sport-tuned adjustable suspension. The result is a highly functional machine that’s a blast to ride almost anywhere.

General information
Model name Yamaha Wolverine 450 Auto. 4X4
Year 2010
Category ATV
Price as newUS$ 6399. MSRP depends on country, taxes, accessories, etc.
Rating Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement 421.0 ccm (25.69 cubic inches)
Engine type Single cylinder, four-stroke
Compression 10.0:1
Bore x stroke 84.5 x 75.0 mm (3.3 x 3.0 inches)
Valves per cylinder 2
Fuel system Carburettor. Mikuni® 33mm BSR
Fuel control Single Overhead Cams (SOHC)
Ignition DC – CDI
Cooling system Liquid
Gearbox 5-speed
Transmission type Shaft drive (cardan) (final drive)
Chassis, suspension, brakes and wheels
Front suspension Independent double wishbone
Front wheel travel 127 mm (5.0 inches)
Rear suspension Swingarm
Rear wheel travel 127 mm (5.0 inches)
Front tire 23/7-AT12
Rear tire 23/10-AT12
Front brakes Double disc
Rear brakes Single disc
Physical measures and capacities
Weight incl. oil, gas, etc 249.5 kg (550.0 pounds)
Seat height 841 mm (33.1 inches) If adjustable, lowest setting.
Overall height 1095 mm (43.1 inches)
Overall length 1979 mm (77.9 inches)
Overall width 1064 mm (41.9 inches)
Ground clearance 221 mm (8.7 inches)
Wheelbase 1232 mm (48.5 inches)
Fuel capacity 14.38 litres (3.80 US gallons)
Other specifications
Color options White/Red
Starter Electric
