General information |
Model
|

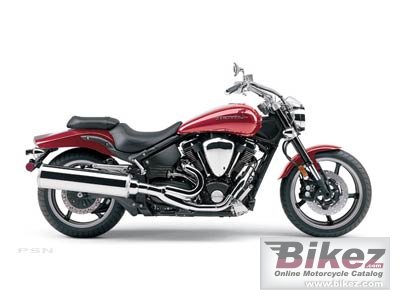

Yamaha Warrior |
Year model
|
2006 |
Type
|
Custom / cruiser |
Price as new | US$ 12399. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.4 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
1670.0 ccm (101.90 cubic inches) |
Type of engine
|
V2, four-stroke |
Compression
|
8.3:1 |
Bore x stroke
|
97.0 x 113.0 mm (3.8 x 4.4 inches) |
Fuel system
|
Injection. Twin-bore Electronic Fuel Injection, w/throttle position sensor |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
Digital TCI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Belt (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
41mm Kayaba inverted telescopic fork |
Front wheel travel
|
135 mm (5.3 inches) |
Rear suspension
|
Single shock, link-type w/adjustable preload and rebound damping |
Rear wheel travel
|
110 mm (4.3 inches) |
Front tire
|
120/70-ZR18 |
Rear tire
|
200/50-ZR17 |
Front brakes
|
Double disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Dry weight
|
274.9 kg (606.0 pounds) |
Seat height
|
714 mm (28.1 inches) If adjustable, lowest setting. |
Overall height
|
1115 mm (43.9 inches) |
Overall length
|
2385 mm (93.9 inches) |
Overall width
|
935 mm (36.8 inches) |
Ground clearance
|
155 mm (6.1 inches) |
Wheelbase
|
1666 mm (65.6 inches) |
Fuel capacity
|
15.14 litres (4.00 US gallons) |
Other specifications |
Starter
|
Electric |
Modifications compared to previous model
|
Radial-mount front brake calipers provide the latest in braking performance.
New supersport-inspired five-spoke cast wheels look great, so do the new braided stainless clutch and throttle cables.
A new pulley design gets all that power to the back wheel with even more style.
|
