Yamaha Vox Deluxe 20122012 Yamaha Vox Deluxe specifications, pictures, reviews and rating |

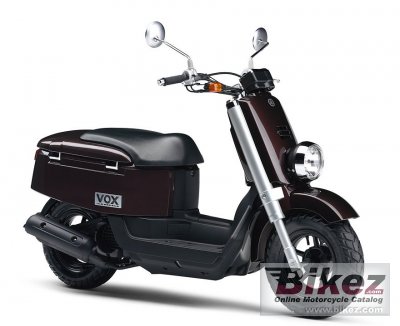

 2012 Yamaha Vox Deluxe. Picture credits - Yamaha. Submit more pictures.
|
| General moped information | |
|---|---|
| Model | Yamaha Vox Deluxe |
| Year model | 2012 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 4.2 HP (3.0 kW)) @ 8000 RPM |
| Torque | 3.9 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
| Bore x stroke | 38.0 x 43.5 mm (1.5 x 1.7 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Dry, centrifugal shoe |
| Fuel consumption | 1.54 litres/100 km (64.9 km/l or 152.74 mpg) |
| Greenhouse gases | 35.7 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone |
| Rake (fork angle) | 26.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | Telescopic |
| Rear suspension | Swing unit |
| Front tire | 120/90-10 |
| Rear tire | 120/90-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 88.0 kg (194.0 pounds) |
| Power/weight ratio | 0.0473 HP/kg |
| Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Overall height | 1045 mm (41.1 inches) |
| Overall length | 1855 mm (73.0 inches) |
| Overall width | 725 mm (28.5 inches) |
| Ground clearance | 115 mm (4.5 inches) |
| Wheelbase | 1280 mm (50.4 inches) |
| Fuel capacity | 4.50 litres (1.19 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Bronze, white, black |
| Starter | Electric |
| Electrical | 12V, 4AH battery. |
| Light | Halogen bulb, 12V, 35/35W headlights |
| Carrying capacity | 34 liters of storage space |
| Comments | Made in Taiwan. Sold in Japan. Model id XF50D. |
