Yamaha Vox 20112011 Yamaha Vox specifications, pictures, reviews and rating |

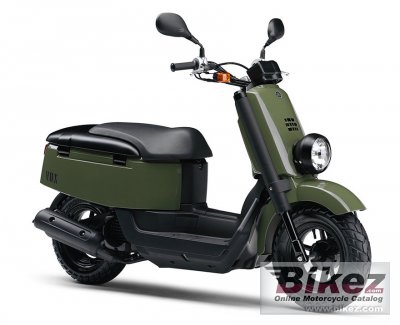

 2011 Yamaha Vox. Picture credits - Yamaha. Submit more pictures.
|
| General moped information | |
|---|---|
| Motorcycle name | Yamaha Vox |
| Year | 2011 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 4.2 HP (3.0 kW)) @ 8000 RPM |
| Torque | 3.9 Nm (0.4 kgf-m or 2.9 ft.lbs) @ 6500 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 38.0 x 43.5 mm (1.5 x 1.7 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Backbone pipe |
| Rake (fork angle) | 26.0° |
| Trail | 84 mm (3.3 inches) |
| Front suspension | Telescopic |
| Rear suspension | Swing unit |
| Front tire | 120/90-10 |
| Rear tire | 120/90-10 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 88.0 kg (194.0 pounds) |
| Power/weight ratio | 0.0473 HP/kg |
| Seat height | 735 mm (28.9 inches) If adjustable, lowest setting. |
| Ground clearance | 115 mm (4.5 inches) |
| Fuel capacity | 4.50 litres (1.19 US gallons) |
| Other specifications | |
| Starter | Electric |
