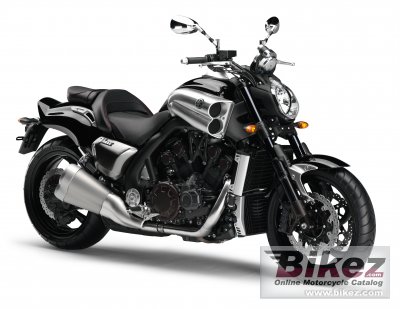

Yamaha VMAX 20092009 Yamaha VMAX specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| Yamaha’s all-new exclusive VMAX offers 21st century engine and chassis technology delivering awesome power, an unrivalled acceleration feeling and the ultimate adrenaline rush. |
| General information | |
|---|---|
| Motorcycle name | Yamaha VMAX |
| Year model | 2009 |
| Type | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 1679.0 ccm (102.45 cubic inches) |
| Type of engine | V4, four-stroke |
| Effect | 197.4 HP (144.1 kW)) |
| Torque | 166.8 Nm (17.0 kgf-m or 123.0 ft.lbs) |
| Compression | 11.3:1 |
| Bore x stroke | 90.0 x 66.0 mm (3.5 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition | T.C.I. |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet, multiple-disc diaphragm spring |
| Chassis, suspension, brakes and wheels | |
| Frame type | Aluminium, diamond-shaped |
| Rake (fork angle) | 31.0° |
| Trail | 148 mm (5.8 inches) |
| Front suspension | Telescopic forks, Æ 52 mm |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Swingarm (Link-type suspension) |
| Rear wheel travel | 110 mm (4.3 inches) |
| Front tire | 120/70-R18 |
| Rear tire | 200/50-R18 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 298 mm (11.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 310.0 kg (683.4 pounds) |
| Seat height | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Overall height | 1190 mm (46.9 inches) |
| Overall length | 2395 mm (94.3 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1700 mm (66.9 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Solar black |
| Starter | Electric |
