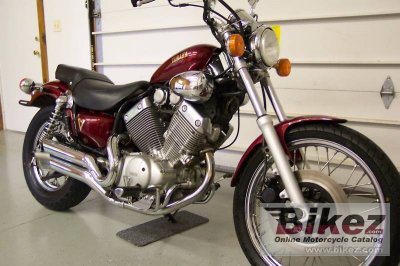

Yamaha Virago XV 535 19871987 Yamaha Virago XV 535 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha Virago XV 535 |
| Year of manufacture | 1987 |
| Type | Custom / cruiser |
| Rating | 3.1 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 535.0 ccm (32.65 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 42.0 HP (30.7 kW)) @ 7500 RPM |
| Torque | 43.0 Nm (4.4 kgf-m or 31.7 ft.lbs) @ 6000 RPM |
| Top speed | 160.0 km/h (99.4 mph) |
| 0-100 km/h (0-62 mph) | 7.00 seconds |
| Maximum RPM | 7000 |
| Compression | 9.0:1 |
| Bore x stroke | 76.0 x 59.0 mm (3.0 x 2.3 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Mikuni BDS34 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI |
| Lubrication system | Wet sump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Wet multi-plate |
| Driveline | Constant mesh |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Pressed steel backbone |
| Rake (fork angle) | 31.0° |
| Trail | 122 mm (4.8 inches) |
| Front suspension | Telescopic fork |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Dual shock, adjustable |
| Rear wheel travel | 85 mm (3.3 inches) |
| Front tire | 3.00-19 |
| Rear tire | 140/90-15 |
| Front brakes | Single disc. Two-piston calipers. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 185.0 kg (407.9 pounds) |
| Power/weight ratio | 0.2270 HP/kg |
| Seat height | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall height | 1100 mm (43.3 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 815 mm (32.1 inches) |
| Ground clearance | 145 mm (5.7 inches) |
| Wheelbase | 1511 mm (59.5 inches) |
| Fuel capacity | 8.60 litres (2.27 US gallons) |
| Reserve fuel capacity | 2.00 litres (0.53 US gallons) |
| Oil capacity | 2.80 litres (2.96 US quarts) |
| Other specifications | |
| Color options | Deep Scarlet, Greenish Black |
| Starter | Electric |
| Modifications compared to previous model | First model year. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 87 Yamaha Virago XV 535 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
