Yamaha's profilation of this bike |
Spacious locking storage compartment is perfect for backpacks and groceries. The Vino Classic achieves fuel economy up to an estimated 110 mpg** with a fuel tank that holds 1.2 gallons of gas. |
General moped information |
Motorcycle name
|

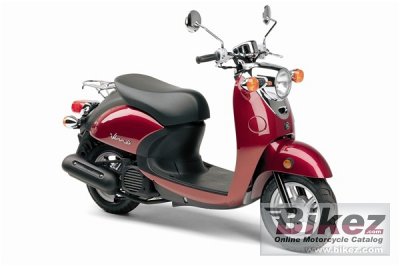

Yamaha Vino Classic |
Year of manufacture
|
2010 |
Type
|
Scooter |
Price as new | US$ 2190. MSRP depends on country, taxes, accessories, etc. |
Rating
|
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission |
Engine size
|
49.0 ccm (2.99 cubic inches) |
Type of engine
|
Single cylinder, four-stroke |
Compression
|
12.0:1 |
Bore x stroke
|
38.0 x 43.5 mm (1.5 x 1.7 inches) |
Valves per cylinder
|
3 |
Fuel system
|
Carburettor. Teikei 14mm |
Fuel control
|
Overhead Valves (OHV) |
Ignition
|
CDI |
Cooling system
|
Liquid |
Gearbox
|
Automatic |
Transmission type
|
Belt (final drive) |
Clutch
|
Dry centrifugal automatic clutch |
Fuel consumption
|
2.13 litres/100 km (46.9 km/l or 110.43 mpg) |
Greenhouse gases
|
49.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork, 2.3-in travel |
Rear suspension
|
Single shock, 2.1-in travel |
Front tire
|
90/90-10 |
Rear tire
|
90/90-10 |
Front brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
110 mm (4.3 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
80.7 kg (178.0 pounds) |
Seat height
|
714 mm (28.1 inches) If adjustable, lowest setting. |
Overall height
|
1006 mm (39.6 inches) |
Overall length
|
1666 mm (65.6 inches) |
Overall width
|
630 mm (24.8 inches) |
Ground clearance
|
94 mm (3.7 inches) |
Wheelbase
|
1161 mm (45.7 inches) |
Fuel capacity
|
4.54 litres (1.20 US gallons) |
Other specifications |
Color options
|
Raspberry Metallic |
Starter
|
Electric |
