General information |
|
Model
|

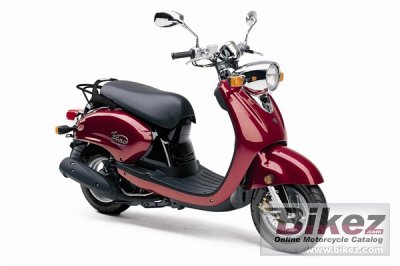

Yamaha Vino 125 |
|
Model year
|
2012 |
|
Category
|
Scooter |
| Price as new | US$ 2899. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Displacement
|
124.0 ccm (7.57 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Compression
|
9.8:1 |
|
Bore x stroke
|
51.5 x 60.0 mm (2.0 x 2.4 inches) |
|
Fuel system
|
Carburettor. 26mm Mikuni |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
V-belt |
|
Fuel consumption
|
2.45 litres/100 km (40.8 km/l or 96.01 mpg) |
|
Greenhouse gases
|
56.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork, 2.3-in travel |
|
Rear suspension
|
Single shock, 2.1-in travel |
|
Front tire
|
3.50-10 |
|
Rear tire
|
3.50-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
110 mm (4.3 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
108.9 kg (240.0 pounds) |
|
Seat height
|
759 mm (29.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1062 mm (41.8 inches) |
|
Overall length
|
1753 mm (69.0 inches) |
|
Overall width
|
699 mm (27.5 inches) |
|
Ground clearance
|
94 mm (3.7 inches) |
|
Wheelbase
|
1229 mm (48.4 inches) |
|
Fuel capacity
|
4.54 litres (1.20 US gallons) |
|
Other specifications |
|
Color options
|
Raspberry Metalic, Silver |
|
Starter
|
Electric |
|
Factory warranty
|
1 Year (Limited Factory Warranty) |
