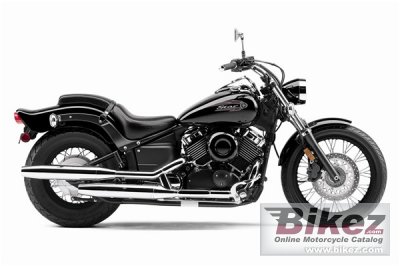

Yamaha's profilation of this bike |
The long and chopperesque V Star Custom is the also the lightest of the Stars, which means great handling and performance are along for the ride, too.
|
General information |
Model name
|
Yamaha V Star Custom |
Model year
|
2009 |
Category
|
Custom / cruiser |
Price as new | US$ 6390. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.3 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
655.5 ccm (40.00 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
9.0:1 |
Bore x stroke
|
81.0 x 63.0 mm (3.2 x 2.5 inches) |
Fuel system
|
Carburettor. Mikuni |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Fuel consumption
|
4.80 litres/100 km (20.8 km/l or 49.00 mpg) |
Greenhouse gases
|
111.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel; hidden shock |
Rake (fork angle)
|
32.0° |
Front suspension
|
41mm telescopic fork |
Front wheel travel
|
140 mm (5.5 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
86 mm (3.4 inches) |
Front tire
|
100/90-19 |
Rear tire
|
170/80-15 |
Front brakes
|
Single disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Expanding brake (drum brake) |
Diameter
|
200 mm (7.9 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
232.7 kg (513.0 pounds) |
Seat height
|
696 mm (27.4 inches) If adjustable, lowest setting. |
Overall height
|
1067 mm (42.0 inches) |
Overall length
|
2337 mm (92.0 inches) |
Overall width
|
879 mm (34.6 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1610 mm (63.4 inches) |
Fuel capacity
|
15.89 litres (4.20 US gallons) |
Other specifications |
Color options
|
Tommy Blue w/flames, Raven - Midnight Custom |
Update specs | Report missing specs or required updates. |
