General information |
|
Model
|

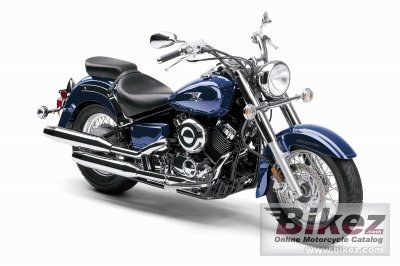

Yamaha V Star Classic |
|
Year of manufacture
|
2013 |
|
Type
|
Custom / cruiser |
| Price as new | US$ 6590. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
655.5 ccm (40.00 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
81.0 x 63.0 mm (3.2 x 2.5 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. (2) 28mm Mikuni® CV carburetors |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
TCI: Transistor Controlled Ignition |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Clutch
|
Multiplate wet clutch |
|
Fuel consumption
|
4.80 litres/100 km (20.8 km/l or 49.00 mpg) |
|
Greenhouse gases
|
111.4 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel; hidden shock |
|
Rake (fork angle)
|
32.0° |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Single shock, adjustable preload, 3.9-in travel |
|
Front tire
|
130/90-16 |
|
Rear tire
|
170/80-15 |
|
Front brakes
|
Single disc. Hydraulic. |
|
Diameter
|
298 mm (11.7 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
200 mm (7.9 inches) |
|
Wheels
|
Spoke |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
246.8 kg (544.0 pounds) |
|
Seat height
|
709 mm (27.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
2451 mm (96.5 inches) |
|
Overall width
|
930 mm (36.6 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1626 mm (64.0 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Other specifications |
|
Color options
|
Deep Blue, Candy Red |
|
Starter
|
Electric |
|
Instruments
|
Tank-mounted speedometer |
|
Factory warranty
|
1 Year (Limited Factory Warranty) |
