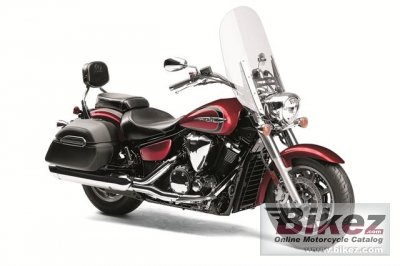

Yamaha V Star 1300 Tourer 20132013 Yamaha V Star 1300 Tourer specifications, pictures, reviews and rating |
| Yamaha's profilation of this bike |
| The V Star 1300 Tourer comes standard with hard leather-wrapped sidebags, passenger backrest and windshield. The touring package is designed from the factory so it’s styled consistently with the bike’s fluid lines. The midsize V Star 1300 Tourer brings modern-classic styling along for a lighter, sportier, hot-rod-inspired ride. |
| General information | |
|---|---|
| Model name | Yamaha V Star 1300 Tourer |
| Year of manufacture | 2013 |
| Type | Touring |
| Price as new | US$ 12290. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.4 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 1311.1 ccm (80.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | 60-degree V-twin. Ceramic composite cylinder sleeves. Forged pistons. |
| Compression | 9.5:1 |
| Bore x stroke | 100.0 x 83.0 mm (3.9 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | TCI: Transistor Controlled Ignition |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Belt (final drive) |
| Fuel consumption | 5.60 litres/100 km (17.9 km/l or 42.00 mpg) |
| Greenhouse gases | 129.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double Cradle |
| Front suspension | 41mm Telescopic fork |
| Front wheel travel | 135 mm (5.3 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 109 mm (4.3 inches) |
| Front tire | 130/90-M16 |
| Rear tire | 170/70-B16 |
| Front brakes | Double disc. Hydraulic. |
| Diameter | 298 mm (11.7 inches) |
| Rear brakes | Single disc. Hydraulic. |
| Diameter | 298 mm (11.7 inches) |
| Wheels | 7-spoke aluminum |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 323.0 kg (712.0 pounds) |
| Seat height | 691 mm (27.2 inches) If adjustable, lowest setting. |
| Overall height | 1519 mm (59.8 inches) |
| Overall length | 2489 mm (98.0 inches) |
| Overall width | 1001 mm (39.4 inches) |
| Wheelbase | 1689 mm (66.5 inches) |
| Fuel capacity | 18.55 litres (4.90 US gallons) |
| Other specifications | |
| Color options | Candy Red |
| Starter | Electric |
| Factory warranty | 1 Year (Limited Factory Warranty) |
| Comments | Windscreen |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Yamaha V Star 1300 Tourer discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Rate motorcycles you know
Rate motorcycles you know and help your fellow riders to find the bike that is right for them. Bikez has the most users and the most extensive motorcycle rating on the net. It includes reliability, design, engine performance, accident risk, repair cost, offroad capabilities, racing track capabilities and touring capabilities. The ratings are also used to rank the 100 most popular MC models each year since 1990. The lists are adjusted weekly as new ratings are added. You can check out the rating of the 2013 Yamaha V Star 1300 Tourer and compare it to other bikes here.| Rating sample for this Yamaha bike | |
Engine performance for the 2013 Yamaha V Star 1300 Tourer:  (68.9 out of 100)Click here for complete rating. |
|
