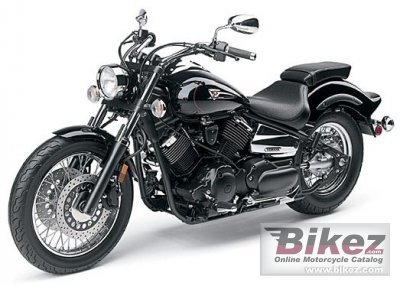

2005 Yamaha V Star 1100 Custom

Yamaha V Star 1100 Custom 2005


2005 Yamaha V Star 1100 Custom specifications, pictures, reviews and rating

Yamaha's profilation of this bike
Incomparable fit and finish the Star Family is famous for, with classic chopper styling and, better still, the price tag closer to most bikes half its size. The V Star® 1100 Custom comes with all the chrome-plated, teardrop-tanked, low-riding, piston-pounding appeal of other V-twin mega-cruisers, but for literally thousands of dollars less.

General information
Model name Yamaha V Star 1100 Custom
Year of manufacture 2005
Type Custom / cruiser
Price as newUS$ 7949. MSRP depends on country, taxes, accessories, etc.
Rating 3.7  See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike.
Engine and transmission
Engine size 1063.0 ccm (64.86 cubic inches)
Type of engine V2, four-stroke
Output 62.0 HP (45.3 kW))
Torque 85.0 Nm (8.7 kgf-m or 62.7 ft.lbs)
Compression 8.3:1
Bore x stroke 95.0 x 75.0 mm (3.7 x 3.0 inches)
Valves per cylinder 2
Fuel system Carburettor
Fuel control Single Overhead Cams (SOHC)
Ignition TCI
Cooling system Air
Gearbox 5-speed
Transmission type Shaft drive (cardan) (final drive)
Chassis, suspension, brakes and wheels
Front suspension Telescopic fork
Front wheel travel 140 mm (5.5 inches)
Rear suspension Single shock, link-type, w/adjustable preload
Rear wheel travel 114 mm (4.5 inches)
Front tire 110/90-18
Rear tire 170/80-15
Front brakes Double disc. Two-piston calipers.
Diameter 298 mm (11.7 inches)
Rear brakes Single disc. Single-piston caliper.
Diameter 282 mm (11.1 inches)
Physical measures and capacities
Dry weight 259.0 kg (571.0 pounds)
Weight incl. oil, gas, etc 275.0 kg (606.3 pounds)
Power/weight ratio 0.2394 HP/kg
Seat height 691 mm (27.2 inches) If adjustable, lowest setting.
Overall height 1095 mm (43.1 inches)
Overall length 2405 mm (94.7 inches)
Overall width 894 mm (35.2 inches)
Wheelbase 1641 mm (64.6 inches)
Fuel capacity 17.03 litres (4.50 US gallons)
Oil capacity 3.10 litres (3.28 US quarts)
Other specifications
Color options Raven Black, Indigo Blue
Starter Electric
Update specsReport missing specs or required updates.
Maintenance and service specs *
Engine oil SAE 10W-40
Brake fluid DOT 4
Spark plugs NGK BPR7EIX
Idle speed 1000 +/- 50 RPM
Tire pressure front 29 PSI (2 Bar or 200 kPa)
Tire pressure rear 33 PSI (2.3 Bar or 225 kPa)
Fork tube size 41 mm (1.6 inches)
*) Always verify maintenance and service data with the bike owner's manual.
