Yamaha's profilation of this bike |
Retro style is even cooler when it’s combined with Star engineering, including an SOHC air-cooled V-twin and shaft drive.
|
General information |
Model name
|

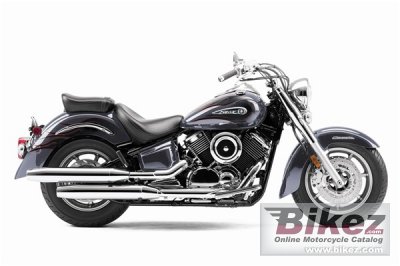

Yamaha V Star 1100 Classic |
Year
|
2009 |
Category
|
Custom / cruiser |
Price as new | US$ 9490. MSRP depends on country, taxes, accessories, etc. |
Rating
|
3.5 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
1065.2 ccm (65.00 cubic inches) |
Engine type
|
V2, four-stroke |
Compression
|
8.3:1 |
Bore x stroke
|
95.0 x 75.0 mm (3.7 x 3.0 inches) |
Valves per cylinder
|
2 |
Fuel system
|
Carburettor. (2) 37mm Mikuni throttle position sensor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
TCI |
Cooling system
|
Air |
Gearbox
|
5-speed |
Transmission type
|
Shaft drive (cardan) (final drive) |
Fuel consumption
|
5.34 litres/100 km (18.7 km/l or 44.05 mpg) |
Greenhouse gases
|
123.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
Chassis, suspension, brakes and wheels |
Frame type
|
Steel; hidden shock |
Front suspension
|
Telescopic fork |
Front wheel travel
|
140 mm (5.5 inches) |
Rear suspension
|
Single shock |
Rear wheel travel
|
114 mm (4.5 inches) |
Front tire
|
130/90-16 |
Rear tire
|
170/80-15 |
Front brakes
|
Double disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
282 mm (11.1 inches) |
Physical measures and capacities |
Weight incl. oil, gas, etc
|
284.9 kg (628.0 pounds) |
Seat height
|
709 mm (27.9 inches) If adjustable, lowest setting. |
Overall height
|
1100 mm (43.3 inches) |
Overall length
|
2464 mm (97.0 inches) |
Overall width
|
945 mm (37.2 inches) |
Ground clearance
|
140 mm (5.5 inches) |
Wheelbase
|
1646 mm (64.8 inches) |
Fuel capacity
|
17.03 litres (4.50 US gallons) |
Other specifications |
Color options
|
Charcoal Silver w/flames, Candy Red |
Starter
|
Electric |
