Yamaha TZR Race Replica 20062006 Yamaha TZR Race Replica specifications, pictures, reviews and rating |

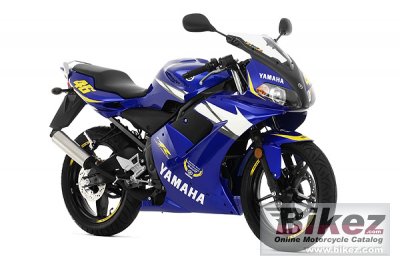

 2006 Yamaha TZR Race Replica. CICCIO. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Only the best need apply... TZR Race Replica is the ultimate with its R-series bodywork and supersport style finished to perfection with World Championship Rossi M1 colours. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha TZR Race Replica |
| Model year | 2006 |
| Category | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power output | 1.7 HP (1.3 kW)) @ 5500 RPM |
| Torque | 2.6 Nm (0.3 kgf-m or 1.9 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Automatic centrifugal |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Swingarm |
| Front tire | 100/80-16 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 113.0 kg (249.1 pounds) |
| Power/weight ratio | 0.0154 HP/kg |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2202 mm (86.7 inches) |
| Overall width | 689 mm (27.1 inches) |
| Ground clearance | 151 mm (5.9 inches) |
| Wheelbase | 1341 mm (52.8 inches) |
| Fuel capacity | 13.80 litres (3.65 US gallons) |
| Other specifications | |
| Color options | Extreme Blue |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha TZR Race Replica discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used mopeds?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2006 Yamaha TZR Race Replica or advertise any other MC for sale. You can list all 2006 Yamaha TZR Race Replica available and also sign up for e-mail notification when such mopeds are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the moped's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha moped | |
Reliability for the 2006 Yamaha TZR Race Replica:  (84.8 out of 100)Click here for complete rating. You can also compare bikes. |
|
