Yamaha TZR 50 20102010 Yamaha TZR 50 specifications, pictures, reviews and rating |

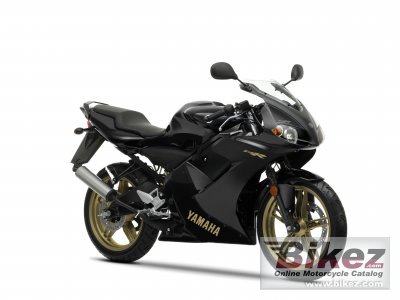

 2010 Yamaha TZR 50. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| With a design influenced by the R-series supersport bikes, there’s no better place to start your supersport life than on a TZR50. Feel the power of the liquid-cooled 2-stroke 50cc engine and shift smoothly through the 6-speed gearbox. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha TZR 50 |
| Year of manufacture | 2010 |
| Type | Sport |
| Rating | 2.9 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.7 ccm (3.03 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Output | 2.7 HP (2.0 kW)) @ 6250 RPM |
| Torque | 2.9 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Ignition | CDI |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 31 mm (1.2 inches) |
| Front tire | 100/80-17 |
| Rear tire | 130/70-17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 128.0 kg (282.2 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2002 mm (78.8 inches) |
| Overall width | 689 mm (27.1 inches) |
| Ground clearance | 151 mm (5.9 inches) |
| Wheelbase | 1341 mm (52.8 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Blue, gray |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Yamaha TZR 50 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used mopeds?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2010 Yamaha TZR 50 or advertise any other MC for sale. You can list all 2010 Yamaha TZR 50 available and also sign up for e-mail notification when such mopeds are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the moped's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha moped | |
Design and look for the 2010 Yamaha TZR 50:  (61.2 out of 100)Click here for complete rating. You can also compare bikes. |
|
