General moped information |
Motorcycle name
|

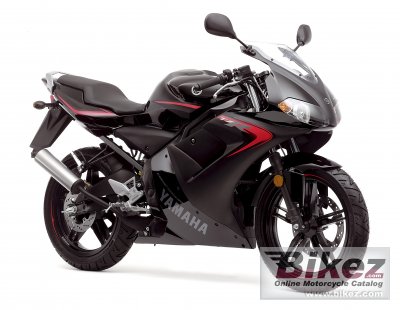

Yamaha TZR 50 |
Year
|
2007 |
Category
|
Sport |
Rating
|
3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
49.7 ccm (3.03 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power
|
2.4 HP (1.8 kW)) @ 6500 RPM |
Torque
|
2.9 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5500 RPM |
Compression
|
11.5:1 |
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
Fuel system
|
Carburettor. PHBN 16 |
Ignition
|
CDI |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Rear suspension
|
swingarm |
Front tire
|
100/70-17 |
Rear tire
|
130/70-17 |
Front brakes
|
Single disc |
Diameter
|
280 mm (11.0 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
114.0 kg (251.3 pounds) |
Power/weight ratio
|
0.0211 HP/kg |
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
Overall height
|
1105 mm (43.5 inches) |
Overall length
|
2202 mm (86.7 inches) |
Overall width
|
689 mm (27.1 inches) |
Ground clearance
|
151 mm (5.9 inches) |
Wheelbase
|
1341 mm (52.8 inches) |
Fuel capacity
|
13.80 litres (3.65 US gallons) |
Other specifications |
Starter
|
Electric |
