2004 Yamaha TZR 50

Yamaha TZR 50 2004


2004 Yamaha TZR 50 specifications, pictures, reviews and rating

2004 Yamaha TZR 50

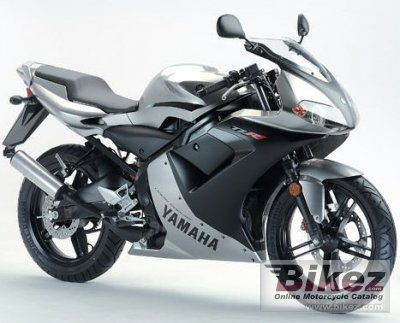

2004 Yamaha TZR 50. Picture credits - Yamaha. Submit more pictures.
Yamaha's profilation of this bike
The TZR, The first step in the R-Series. The Yamaha supersport sensation gets stronger and stronger. The awesome R1 and R6 have already raised the sports bike standards of style and performance. Now the TZR does same in the 50cc class.

General moped information
Model name Yamaha TZR 50
Year model 2004
Type Sport
Rating 3.9  Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike.
Engine and transmission
Engine size 49.7 ccm (3.03 cubic inches)
Type of engine Single cylinder, two-stroke
Compression 6.9:1
Bore x stroke 40.3 x 39.0 mm (1.6 x 1.5 inches)
Chassis, suspension, brakes and wheels
Front suspension Hydraulic and telescopic fork
Rear suspension Swingarm
Front tire 100/80-17
Rear tire 130/70-17
Front brakes Single disc
Diameter 280 mm (11.0 inches)
Rear brakes Single disc
Diameter 220 mm (8.7 inches)
Physical measures and capacities
Dry weight 113.0 kg (249.1 pounds)
Seat height 815 mm (32.1 inches) If adjustable, lowest setting.
Overall height 1105 mm (43.5 inches)
Overall length 2202 mm (86.7 inches)
Overall width 689 mm (27.1 inches)
Ground clearance 151 mm (5.9 inches)
Wheelbase 1341 mm (52.8 inches)
Other specifications
Color options Chili (grey), Yamaha blue
