Yamaha TZR 20062006 Yamaha TZR specifications, pictures, reviews and rating |

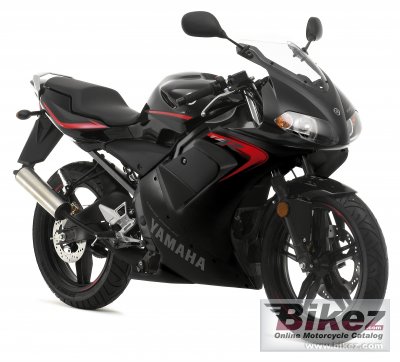

 2006 Yamaha TZR. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Join the men in the big bike supersport experience with the TZR50! With those twin headlights and aerodynamic bodywork the look is pure R-series, and the technology’s the real thing too. Liquid-cooling, proper 6-speed gearbox and clutch, powerful disc brakes, fat supersport tyres and a twin spar frame... |
| General moped information | |
|---|---|
| Model | Yamaha TZR |
| Year model | 2006 |
| Type | Sport |
| Rating | 3.7 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.7 ccm (3.03 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 1.7 HP (1.3 kW)) @ 5500 RPM |
| Torque | 2.6 Nm (0.3 kgf-m or 1.9 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor |
| Ignition | Electronic (CDI) |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Front suspension system |
| Front suspension | Hydraulic and telescopic fork |
| Rear suspension | Swingarm |
| Front tire | 100/80-H17 |
| Rear tire | 130/70-H17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 113.0 kg (249.1 pounds) |
| Power/weight ratio | 0.0154 HP/kg |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2202 mm (86.7 inches) |
| Wheelbase | 1341 mm (52.8 inches) |
| Fuel capacity | 13.80 litres (3.65 US gallons) |
| Other specifications | |
| Color options | Yamaha Blue, Midnight Black |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 06 Yamaha TZR discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Buying a bike starts at BikezGet a list of related motorbikes before you buy this Yamaha. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the moped's reliability, repair costs, etc. Show any 2006 Yamaha TZR for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such mopeds are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews. |
|
| Rating sample for this Yamaha moped | |
Engine performance for the 2006 Yamaha TZR:  (74.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
