General moped information |
|
Motorcycle name
|

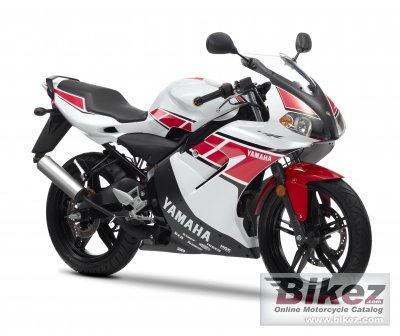

Yamaha TZR50 WGP 50th Anniversary |
|
Year of manufacture
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.0 ccm (2.99 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Output
|
2.7 HP (2.0 kW)) @ 6250 RPM |
|
Torque
|
3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 5500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. PHBN 16 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
Separate lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Constant Mesh |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Swingarm |
|
Rear wheel travel
|
31 mm (1.2 inches) |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
280 mm (11.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Seat
|
Dual seat |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
128.0 kg (282.2 pounds) |
|
Seat height
|
815 mm (32.1 inches) If adjustable, lowest setting. |
|
Overall height
|
1105 mm (43.5 inches) |
|
Overall length
|
2202 mm (86.7 inches) |
|
Overall width
|
689 mm (27.1 inches) |
|
Ground clearance
|
151 mm (5.9 inches) |
|
Wheelbase
|
1341 mm (52.8 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Color options
|
White/red/black |
|
Starter
|
Electric |
|
Instruments
|
Analogue tachometer and LCD speedometer, |
