Yamaha TZR50 20132013 Yamaha TZR50 specifications, pictures, reviews and rating |

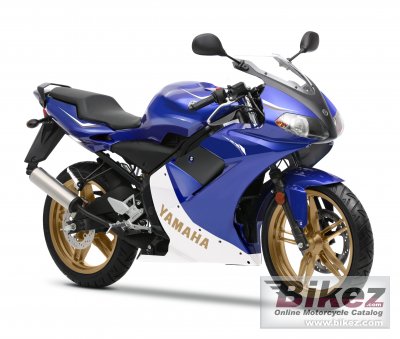

 2013 Yamaha TZR50. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| The TZR50 can be your first step into the world of superbike power and performance: with its 6-speed manual gearbox, a race-style, liquid-cooled 2-stroke engine, powerful brakes and sports-style suspension. |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha TZR50 |
| Year model | 2013 |
| Type | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 49.0 ccm (2.99 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 2.7 HP (2.0 kW)) @ 6250 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. PHBN 16 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic (CDI) |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | Constant mesh |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 31 mm (1.2 inches) |
| Front tire | 100/80-H17 |
| Rear tire | 130/70-H17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 112.0 kg (246.9 pounds) |
| Weight incl. oil, gas, etc | 128.0 kg (282.2 pounds) |
| Power/weight ratio | 0.0239 HP/kg |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2202 mm (86.7 inches) |
| Ground clearance | 151 mm (5.9 inches) |
| Wheelbase | 1341 mm (52.8 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Color options | Blue, white |
| Starter | Electric |
| Comments | Small windscreen. |
