Yamaha TZR50 20122012 Yamaha TZR50 specifications, pictures, reviews and rating |

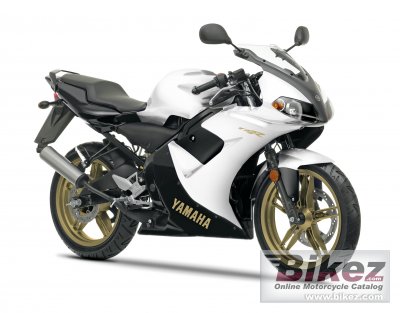

 2012 Yamaha TZR50. Picture credits - Yamaha. Submit more pictures.
|
| Yamaha's profilation of this bike |
| Kickstart the 2-stroke liquid-cooled engine into life, twist the throttle and feel your pulse quicken as you power through the 6-speed manual gearbox. Featuring race-bred technology and R-series supersport styling, this special TZR50 is built to deliver superior power characteristics and precise cornering for even more riding excitement. |
| General moped information | |
|---|---|
| Model name | Yamaha TZR50 |
| Year | 2012 |
| Category | Sport |
| Rating | 3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 2.7 HP (2.0 kW)) @ 6250 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 5500 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 40.3 x 39.0 mm (1.6 x 1.5 inches) |
| Fuel system | Carburettor. PHBN 16 |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic (CDI) |
| Lubrication system | Separate lubrication |
| Cooling system | Liquid |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | Constant Mesh |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Swingarm |
| Rear wheel travel | 31 mm (1.2 inches) |
| Front tire | 100/80-H17 |
| Rear tire | 130/70-H17 |
| Front brakes | Single disc |
| Diameter | 280 mm (11.0 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 128.0 kg (282.2 pounds) |
| Seat height | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height | 1105 mm (43.5 inches) |
| Overall length | 2202 mm (86.7 inches) |
| Wheelbase | 1341 mm (52.8 inches) |
| Fuel capacity | 14.00 litres (3.70 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Yamaha TZR50 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Free motorcycle classifiedsClick here to sell a used 2012 Yamaha TZR50 or advertise any other MC for sale. You can list all available Yamaha TZR50 bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc. |
|
| Rating sample for this Yamaha moped | |
Reliability for the 2012 Yamaha TZR50:  (71.5 out of 100)Click here for complete rating. You can also compare bikes. |
|
