Yamaha's profilation of this bike |
With a design influenced by Yamaha´s R-series supersport bikes, there’s no better place to start your supersport life than on a TZR50. |
General moped information |
Model name
|

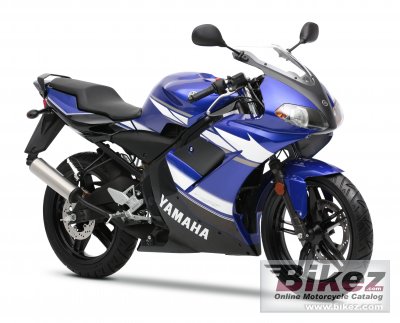

Yamaha TZR50 |
Year
|
2011 |
Category
|
Sport |
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Displacement
|
49.0 ccm (2.99 cubic inches) |
Engine type
|
Single cylinder, two-stroke |
Power
|
1.7 HP (1.3 kW)) @ 5500 RPM |
Torque
|
2.6 Nm (0.3 kgf-m or 1.9 ft.lbs) @ 5500 RPM |
Compression
|
11.5:1 |
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
Fuel system
|
Carburettor |
Fuel control
|
Single Overhead Cams (SOHC) |
Ignition
|
Electronic (CDI) |
Lubrication system
|
Separate lubrication |
Cooling system
|
Liquid |
Gearbox
|
5-speed |
Transmission type
|
Chain (final drive) |
Chassis, suspension, brakes and wheels |
Front suspension
|
Telescopic fork |
Rear suspension
|
Swingarm |
Front tire
|
100/80-H17 |
Rear tire
|
130/70-H17 |
Front brakes
|
Single disc |
Diameter
|
280 mm (11.0 inches) |
Rear brakes
|
Single disc |
Diameter
|
220 mm (8.7 inches) |
Physical measures and capacities |
Dry weight
|
113.0 kg (249.1 pounds) |
Power/weight ratio
|
0.0154 HP/kg |
Overall height
|
1105 mm (43.5 inches) |
Overall length
|
2202 mm (86.7 inches) |
Wheelbase
|
1341 mm (52.8 inches) |
Fuel capacity
|
13.80 litres (3.65 US gallons) |
Other specifications |
Starter
|
Electric |
