General information |
Motorcycle name
|

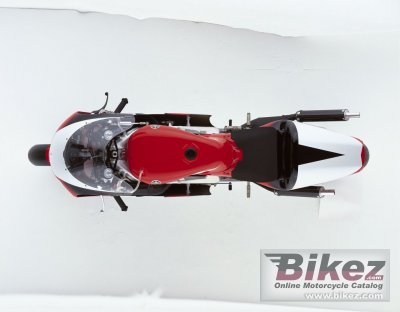

Yamaha TZ 250 |
Year of manufacture
|
2002 |
Type
|
Sport |
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
249.0 ccm (15.19 cubic inches) |
Type of engine
|
V2, two-stroke |
Output
|
86.9 HP (63.4 kW)) @ 12250 RPM |
Torque
|
50.0 Nm (5.1 kgf-m or 36.9 ft.lbs) @ 11750 RPM |
Compression
|
8.2:1 |
Bore x stroke
|
56.0 x 50.7 mm (2.2 x 2.0 inches) |
Cooling system
|
Liquid |
Chassis, suspension, brakes and wheels |
Front wheel travel
|
110 mm (4.3 inches) |
Rear wheel travel
|
113 mm (4.4 inches) |
Front tire
|
120/60-R17 |
Rear tire
|
165/55-R17 |
Front brakes
|
Dual disc |
Diameter
|
298 mm (11.7 inches) |
Rear brakes
|
Single disc |
Diameter
|
185 mm (7.3 inches) |
Physical measures and capacities |
Dry weight
|
104.0 kg (229.3 pounds) |
Power/weight ratio
|
0.8356 HP/kg |
Seat height
|
773 mm (30.4 inches) If adjustable, lowest setting. |
Overall height
|
1077 mm (42.4 inches) |
Overall length
|
1957 mm (77.0 inches) |
Overall width
|
650 mm (25.6 inches) |
Ground clearance
|
119 mm (4.7 inches) |
Wheelbase
|
1345 mm (53.0 inches) |
Other specifications |
