Yamaha TY50p 19761976 Yamaha TY50p specifications, pictures, reviews and rating |

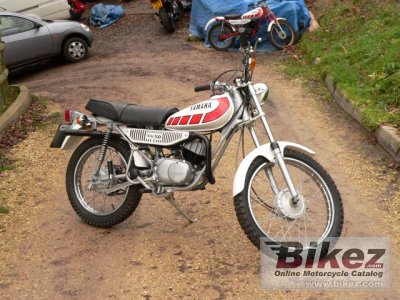

1976 Yamaha TY50p. Picture credit www.screamingtys.co.uk.
| Yamaha's profilation of this bike |
| Yamaha TY50p .....it can take it |
| General moped information | |
|---|---|
| Motorcycle name | Yamaha TY50p |
| Year model | 1976 |
| Type | Classic |
| Rating | 3.2 See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 50.0 ccm (3.05 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Effect | 2.9 HP (2.1 kW)) @ 5500 RPM |
| Top speed | 60.0 km/h (37.3 mph) |
| Compression | 6.8:1 |
| Bore x stroke | 40.0 x 39.7 mm (1.6 x 1.6 inches) |
| Fuel system | Carburettor. Mikuni |
| Lubrication system | Automix |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet Plate |
| Exhaust system | Standard |
| Chassis, suspension, brakes and wheels | |
| Frame type | Duplex Cradle |
| Front suspension | Telescopic fork |
| Rear suspension | Twin shock |
| Front tire | 2.75-19 |
| Rear tire | 3.00-17 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 72.0 kg (158.7 pounds) |
| Weight incl. oil, gas, etc | 78.0 kg (172.0 pounds) |
| Power/weight ratio | 0.0403 HP/kg |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 975 mm (38.4 inches) |
| Overall length | 1860 mm (73.2 inches) |
| Overall width | 775 mm (30.5 inches) |
| Ground clearance | 200 mm (7.9 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 4.70 litres (1.24 US gallons) |
| Other specifications | |
| Starter | Kick |
