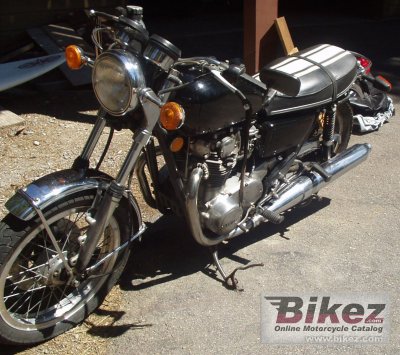

1974 Yamaha TX 750

Yamaha TX 750 1974


1974 Yamaha TX 750 specifications, pictures, reviews and rating

General information
Motorcycle name Yamaha TX 750
Year model 1974
Type Classic
Rating 3.5  See the detailed rating of design and look, engine performance, reliability, fun-factor, etc. Compare with any other bike.
Engine and transmission
Engine size 744.0 ccm (45.40 cubic inches)
Type of engine Twin, four-stroke
Effect 51.0 HP (37.2 kW)) @ 7240 RPM
Top speed 186.0 km/h (115.6 mph)
Compression 8.8:1
Bore x stroke 80.0 x 74.0 mm (3.1 x 2.9 inches)
Valves per cylinder 2
Fuel control Overhead Cams (OHC)
Cooling system Air
Gearbox 5-speed
Transmission type Chain (final drive)
Chassis, suspension, brakes and wheels
Front tire 3.25-18
Rear tire 4.00-18
Front brakes Dual disc
Rear brakes Expanding brake
Physical measures and capacities
Weight incl. oil, gas, etc 240.0 kg (529.1 pounds)
Fuel capacity 19.00 litres (5.02 US gallons)
Other specifications
