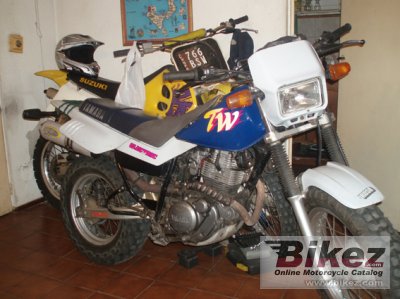

Yamaha TW 200 Electric 19921992 Yamaha TW 200 Electric specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha TW 200 Electric |
| Year | 1992 |
| Category | Enduro / offroad |
| Price as new | US$ 4150. MSRP depends on country, taxes, accessories, etc. |
| Rating | 3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 196.0 ccm (11.96 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 16.0 HP (11.7 kW)) @ 8000 RPM |
| Torque | 15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 7000 RPM |
| Top speed | 120.0 km/h (74.6 mph) |
| 0-100 km/h (0-62 mph) | 5.00 seconds |
| 1/4 mile (0.4 km) | 14.00 seconds |
| Max RPM | 9000 |
| Compression | 9.5:1 |
| Bore x stroke | 67.0 x 55.7 mm (2.6 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. Keihin 28 mm |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Lubrication system | Wet dump |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet plate |
| Fuel consumption | 4.00 litres/100 km (25.0 km/l or 58.81 mpg) |
| Greenhouse gases | 92.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system | 1:1 Steel pipes |
| Chassis, suspension, brakes and wheels | |
| Front suspension | 33mm telescopic front fork with 6.3 inches of travel soaks up the bumps for a plush ride. |
| Front wheel travel | 160 mm (6.3 inches) |
| Rear suspension | Lightweight box section swingarm and single rear shock |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 130/80-18-66P |
| Rear tire | 180/80-14 M/C 78P |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Weight incl. oil, gas, etc | 126.0 kg (277.8 pounds) |
| Power/weight ratio | 0.1356 HP/kg |
| Front percentage of weight | 55.0 |
| Rear percentage of weight | 45.0 |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Alternate seat height | 800 mm (31.5 inches) If adjustable, highest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 2135 mm (84.1 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 265 mm (10.4 inches) |
| Wheelbase | 1320 mm (52.0 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Reserve fuel capacity | 1.00 litres (0.26 US gallons) |
| Other specifications | |
| Starter | Electric |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 92 Yamaha TW 200 Electric discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
