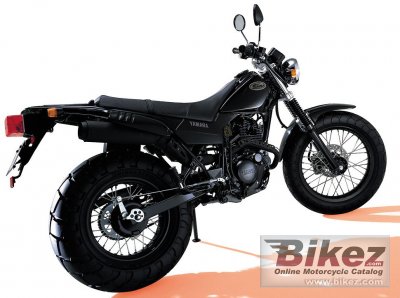

Yamaha TW 200 20022002 Yamaha TW 200 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Yamaha TW 200 |
| Year of manufacture | 2002 |
| Type | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 196.0 ccm (11.96 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 16.0 HP (11.7 kW)) @ 8000 RPM |
| Torque | 15.0 Nm (1.5 kgf-m or 11.1 ft.lbs) @ 7000 RPM |
| Compression | 9.5:1 |
| Bore x stroke | 67.0 x 55.7 mm (2.6 x 2.2 inches) |
| Valves per cylinder | 2 |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front tire | 130/80-18 66P |
| Rear tire | 180/80-14 M/C 78P |
| Front brakes | Single disc |
| Rear brakes | Expanding brake |
| Physical measures and capacities | |
| Dry weight | 120.0 kg (264.6 pounds) |
| Power/weight ratio | 0.1333 HP/kg |
| Seat height | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height | 1110 mm (43.7 inches) |
| Overall length | 2090 mm (82.3 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1330 mm (52.4 inches) |
| Fuel capacity | 7.00 litres (1.85 US gallons) |
| Other specifications | |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 02 Yamaha TW 200 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2002 Yamaha TW 200 discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Yamaha bike | |
Engine performance for the 2002 Yamaha TW 200:  (74.6 out of 100)Click here for complete rating. |
|
