Yamaha TW 125 20042004 Yamaha TW 125 specifications, pictures, reviews and rating |

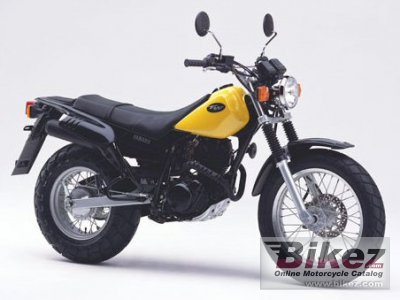

 2004 Yamaha TW 125. Picture credits - Yamaha. Submit more pictures. |
|
| Yamaha's profilation of this bike |
| Be seen in all the right places with the refreshingly different Yamaha TW125. For zippy performance with low fuel consumption this fashionable lightweight features a 125cc 4-stroke electric-start engine. And fat dual-purpose tyres and a low seat make this one of the coolest and most comfortable bikes around town. |
| General information | |
|---|---|
| Motorcycle name | Yamaha TW 125 |
| Model year | 2004 |
| Category | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 11.8 HP (8.6 kW)) @ 12000 RPM |
| Torque | 9.7 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 6500 RPM |
| Compression | 10.0:1 |
| Bore x stroke | 57.0 x 48.8 mm (2.2 x 1.9 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic forks |
| Front wheel travel | 150 mm (5.9 inches) |
| Rear suspension | Swingarm Monocross |
| Rear wheel travel | 150 mm (5.9 inches) |
| Front tire | 130/80-18 |
| Rear tire | 180/80-14 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Power/weight ratio | 0.1000 HP/kg |
| Seat height | 805 mm (31.7 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 2135 mm (84.1 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 260 mm (10.2 inches) |
| Wheelbase | 1350 mm (53.1 inches) |
| Other specifications | |
| Color options | Silver Ice, Extreme yellow, |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 04 Yamaha TW 125 discussion group or the general Yamaha discussion group. |
| Related bikes | List related bikes for comparison of specs. |
Sell or buy used bikes?Bikez.biz has an efficient motorcycle classifieds. Ads are free. Click here to sell a used 2004 Yamaha TW 125 or advertise any other MC for sale. You can list all 2004 Yamaha TW 125 available and also sign up for e-mail notification when such bikes are advertised in the future. Bikez has a high number of users looking for used bikes. Before you buy this bike, you should view the list of related motorbikes Compare technical specs. Look at photos. And check out the rating of the bike's engine performance, repair costs, etc. |
|
| Rating sample for this Yamaha bike | |
Offroad capabilities for the 2004 Yamaha TW 125:  (65.3 out of 100)Click here for complete rating. You can also compare bikes. |
|
