| General information |
|---|

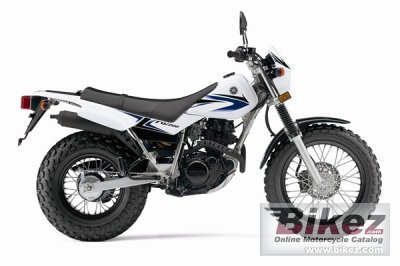

| Model: | Yamaha TW200 |
| Year: | 2009 |
| Category: | Allround |
| Rating: | 73.1 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 3990. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 196.00 ccm (11.96 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.5:1 |
| Bore x stroke: | 67.0 x 55.7 mm (2.6 x 2.2 inches) |
| Fuel system: | Carburettor. MikuniŽ 28mm |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Chain |
| Fuel consumption: | 3.01 litres/100 km (33.2 km/l or 78.15 mpg) |
| Greenhouse gases: | 69.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic fork |
| Front wheel travel: | 160 mm (6.3 inches) |
| Rear suspension: | Single shock |
| Rear wheel travel: | 150 mm (5.9 inches) |
| Front tyre: | 130/80-18 |
| Rear tyre: | 180/80-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 110 mm (4.3 inches) |
| Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 126.6 kg (279.0 pounds) |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,120 mm (44.1 inches) |
| Overall length: | 2,090 mm (82.3 inches) |
| Overall width: | 820 mm (32.3 inches) |
| Ground clearance: | 264 mm (10.4 inches) |
| Wheelbase: | 1,326 mm (52.2 inches) |
| Fuel capacity: | 6.81 litres (1.80 gallons) |
| Other specifications |
|---|
| Color options: | White/Blue |
