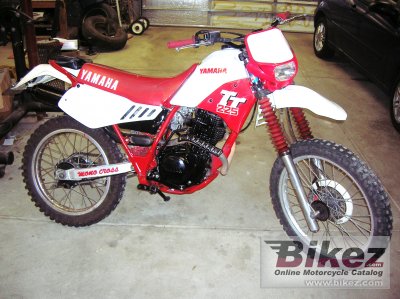

Yamaha TT 225 19871987 Yamaha TT 225 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Yamaha TT 225 |
| Year model | 1987 |
| Type | Enduro / offroad |
| Rating | 3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 223.0 ccm (13.61 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Valves per cylinder | 2 |
| Fuel system | Carburettor. 26mm teikei |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | Telescope Forks |
| Front wheel travel | 239 mm (9.4 inches) |
| Rear suspension | Link Type single shock |
| Rear wheel travel | 221 mm (8.7 inches) |
| Front tire | Pirelli-MT320H |
| Rear tire | Pirelli-MT320 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 130 mm (5.1 inches) |
| Physical measures and capacities | |
| Dry weight | 100.7 kg (222.0 pounds) |
| Seat height | 884 mm (34.8 inches) If adjustable, lowest setting. |
| Overall height | 1181 mm (46.5 inches) |
| Overall length | 2065 mm (81.3 inches) |
| Overall width | 800 mm (31.5 inches) |
| Ground clearance | 305 mm (12.0 inches) |
| Wheelbase | 1374 mm (54.1 inches) |
| Fuel capacity | 7.94 litres (2.10 US gallons) |
| Other specifications | |
| Color options | Red and Tan |
| Starter | Kick |
| Comments | Great Fun Adult Bike |
